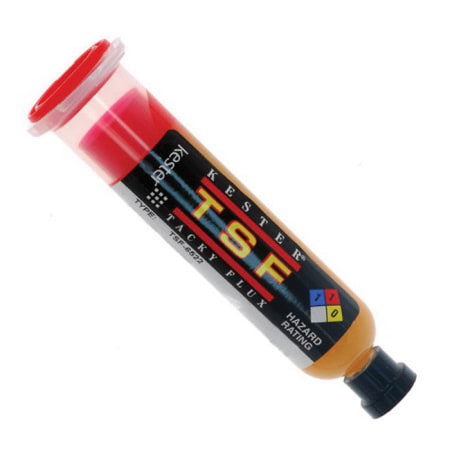

Kester TSF-6522 No-Clean Soldering Flux, 30g Syringe, Amber
MFR #:900403
EIS #:TSF-6522-30G
Series #:TSF-6522
MFR #:900403
EIS #:TSF-6522-30G
Series #:TSF-6522
Out of Stock
Min Qty:1
|Qty Increment:1
The Kester TSF-6522 is a no-clean tacky soldering flux formula designed to be used with a rotating disc, a doctor blade or a drum fluxer. TSF-6522 can also be used in dot dispensing for BGA/PGA sites or in a rework application for surface mount packages. - TSF-6522 maintains its activity and dispensing characteristics for up to 8 hr and can be used in a wide range of temperature and humidity conditions. Kester maintains the highest standards by manufacturing TSF-6522 under a vacuum environment.
$69.00 / each
Min Qty:1
|Qty Increment:1
The Kester TSF-6522 is a no-clean tacky soldering flux formula designed to be used with a rotating disc, a doctor blade or a drum fluxer. TSF-6522 can also be used in dot dispensing for BGA/PGA sites or in a rework application for surface mount packages. - TSF-6522 maintains its activity and dispensing characteristics for up to 8 hr and can be used in a wide range of temperature and humidity conditions. Kester maintains the highest standards by manufacturing TSF-6522 under a vacuum environment.
- Attributes
- Features
Attributes
General Information
Item NameSoldering Flux
SeriesTSF-6522
General Features
Shelf Life3 Months
Storage Temperature0 to 10 °C
Design & Construction
ColorAmber
FormLiquid
Flux TypeNo-Clean
Chemical Properties
Chemical CompositionRosin, Bis(2-Butoxyethyl) Ether, 2,4,7,9-Tetramethyldec-5-yne-4,7-diol, 1H-Imidazole-1-Ethanol, 2-(Heptadecenyl)-4,5-Dihydro, N-Methyl-2-Pyrrolidone
Flux FormulaTSF-6522
Physical Properties
Container Size30g
Container TypeSyringe
Odor/ScentMild
Supporting Information
Flux DesignatorROL1
RoHS Info2011/65/EU Directive
Features
- High tack values and long tack life
- Leaves bright/shiny solder joints after reflow
- Can reflow in air or nitrogen environments
- Temperature rating of 130 to 185 °C
