MFR #:135256
EIS #:LOC17099
Series #:384 Output
MFR #:135256
EIS #:LOC17099
Series #:384 Output
In Stock
Min Qty:1
|Qty Increment:1
Pack:10/Case
more info

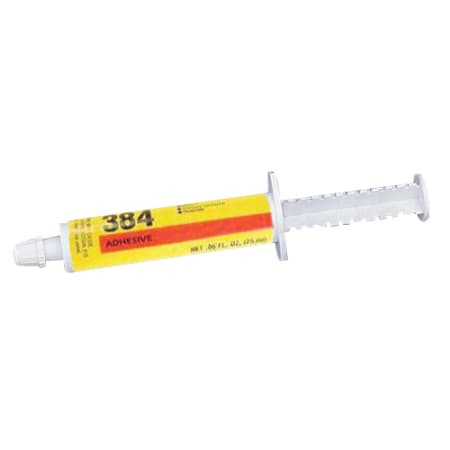

Loctite 384 is a repairable, room temperature-curing adhesive utilized for parts subject to disassembly. LOCTITE® 384 is a white to off-white, 1-part, thermally conductive, modified acrylic paste adhesive designed for bonding heat generating components to heat sinks. The high thermal conductivity provides excellent heat dissipation for thermally sensitive components, while the controlled strength permits field and service repair. It should be limited to a maximum of 500 V in high pot applications.
$59.71 / each
Pack: 10/Case
Min Qty:1
|Qty Increment:1
Pack:10/Case
more info
Loctite 384 is a repairable, room temperature-curing adhesive utilized for parts subject to disassembly. LOCTITE® 384 is a white to off-white, 1-part, thermally conductive, modified acrylic paste adhesive designed for bonding heat generating components to heat sinks. The high thermal conductivity provides excellent heat dissipation for thermally sensitive components, while the controlled strength permits field and service repair. It should be limited to a maximum of 500 V in high pot applications.
- Attributes
- Applications
Attributes
General Information
Item NameThermal Adhesive
Trade NameHenkel
SeriesLOC-384 Output
General Features
Shelf Life9 Months
Storage Temperature2 to 8 °C
Design & Construction
ColorWhite
Cure TypeRoom Temperature
FormPaste
Performance Details
Shear Strength750 psi
Tensile Strength1850 psi
Full Cure Time4 - 24 hr at 20 °C
Chemical Properties
CompositionModified Acrylic
Specific Gravity1
Viscosity100000 cP
VOC266g/L
Electrical Properties
Dielectric Strength26.7kV/mm
Physical Properties
Container Size25mL
Container TypeSyringe
Odor/ScentMild
Elongation0.9%
Environmental Condition
Temperature Rating-40 to 250 °F
Applications
- For Bonding Transformers, Transistors and Other Heat Generating Electronic Components to Printed Circuit Board Assemblies or Heat Sinks
