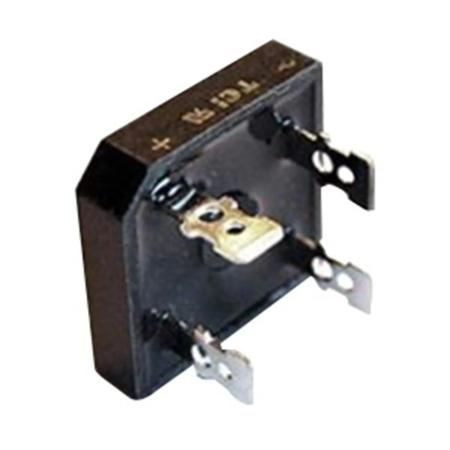

C and H Technology GBPC 1-Phase Bridge Rectifier With Heat Sink Case, 50A, 1000V RRM, Aluminum Finned Plate Mount
MFR #:GBPC50-10
EIS #:1-1050
Series #:C&H-1PH- BRW/HSC
MFR #:GBPC50-10
EIS #:1-1050
Series #:C&H-1PH- BRW/HSC
Low Stock
Min Qty:1
|Qty Increment:1
1-Phase Bridge Rectifier With Heat Sink Case Universal, push-on, wrap around or solder 3 way terminals, High thermal conductivity package, electrically insulated case, Glass passivated diode chips. Nickel plated terminals solderable using lead-free solder, plated faston lugs or wire leads. - Vishay® 1-Phase Bridge Rectifier With Heat Sink Case, 50A, 1.135/1.115 Inch W x 1.135/1.115 Inch H, 1000V RRM Input, Molded Plastic, Aluminum Finned Plate Mount, -65 to 150 °C.
$12.16 / each
Min Qty:1
|Qty Increment:1
1-Phase Bridge Rectifier With Heat Sink Case Universal, push-on, wrap around or solder 3 way terminals, High thermal conductivity package, electrically insulated case, Glass passivated diode chips. Nickel plated terminals solderable using lead-free solder, plated faston lugs or wire leads. - Vishay® 1-Phase Bridge Rectifier With Heat Sink Case, 50A, 1.135/1.115 Inch W x 1.135/1.115 Inch H, 1000V RRM Input, Molded Plastic, Aluminum Finned Plate Mount, -65 to 150 °C.
- Attributes
- Features
- Applications
Attributes
General Information
Item Name1-Phase Bridge Rectifier with Heat Sink Case
SeriesC&H-1PH- BRW/HSC
General Features
StandardsUL File No E302990 Listed, RoHS Compliant
Design & Construction
MaterialMolded Plastic
Mounting TypeAluminum Finned Plate
Electrical Properties
Amperage Rating50 A
Input Voltage1000 V
Physical Properties
Dimensions1.135/1.115 Inch W x 1.135/1.115 Inch H
Environmental Condition
Temperature Rating150 °C
Features
- Wire lead version available
- Maximum instantaneous forward voltage drop per leg 1.1 V (VF), maximum reverse DC current at rated DC blocking Voltage per leg: 5 mA, 500 mA (IR)
- Peak forward surge current, 450 A, rating for fusing, 800A2S (I2t ), typical junction capacitance, 400 pF (CJ), typical thermal resistance per leg , 1.0 RthJC
- Epoxy plastic package has UL flammability classification 94V-0
- 23 cm-kg (20 Inch-lb) maximum mounting torque
- 1000 VRRM maximum repetitive peak reverse voltage, 700 VRMS maximum root mean square voltage, 1000VDC maximum DC blocking voltage
- Temperature Rating: -65 to 150 °C
Applications
- For Welding Power Supplies, Battery Charger, SMPS, UPS, Motor Drives
