MFR #:MB0
EIS #:PH18-MB0
MFR #:MB0
EIS #:PH18-MB0

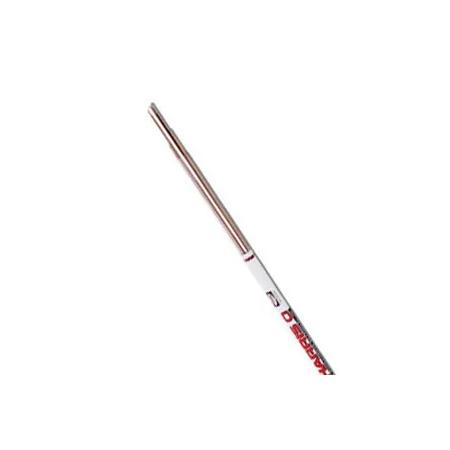

Brazing rods are the standard of the industry. MBO rods are very fluid, economical, medium temperature brazing alloy rods. These rods are self fluxing on copper and ideally suited for copper to copper joints in air conditioners and electrical connections. - Low cost alloy for many copper to copper applications where moderate fit up can be maintained and brazing temperature is not critical.
$29.08
- $33.24
Select from the options below
Brazing rods are the standard of the industry. MBO rods are very fluid, economical, medium temperature brazing alloy rods. These rods are self fluxing on copper and ideally suited for copper to copper joints in air conditioners and electrical connections. - Low cost alloy for many copper to copper applications where moderate fit up can be maintained and brazing temperature is not critical.
Product Options
Showing 2 out of 2 options
Diameter: 0.125 Inch | EIS Part #: MBO-1/8 | $ / US pound | ||
Diameter: 0.0625 Inch | EIS Part #: MBO-1/16 | $ / US pound |
- Attributes
- Features
- Documents
Attributes
General Information
Item NameBrazing Rod
SeriesMB0
Design & Construction
Material92.9% Copper, 7.1% Phosphorus, 0% Silver
Physical Properties
Length20 Inch
Environmental Condition
Temperature Rating710 °C
Supporting Information
AWS ClassificationA5.8 BCuP-2
Features
- 0.002/0.007 Inch recommended joint clearance
- Temperature Rating: 710 °C solidus, 802 °C liquidus
