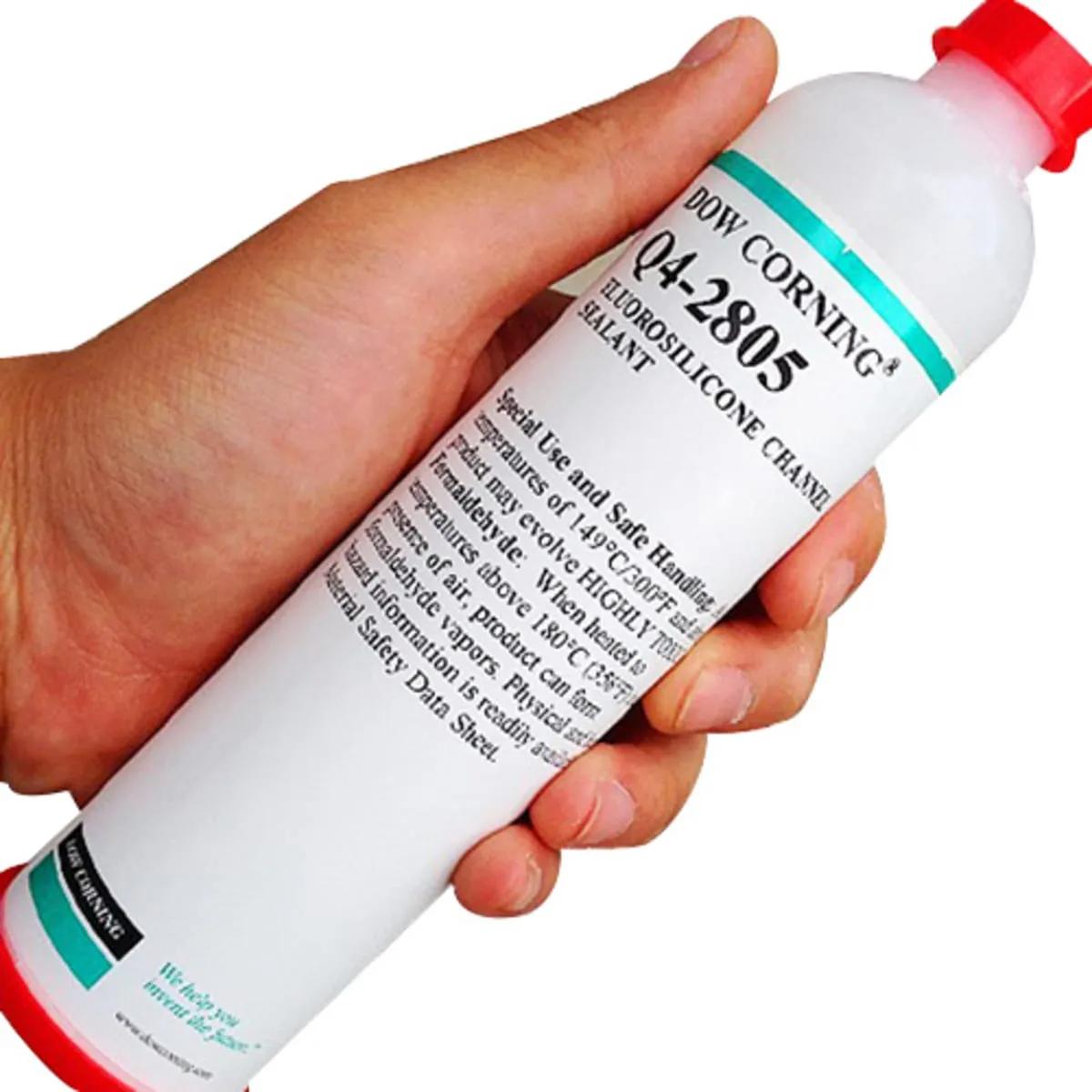

MFR #:Q4-2805 FLUORO SLNT 212G
EIS #:DCQ4-2805X212G
Series #:Q4-2805
MFR #:Q4-2805 FLUORO SLNT 212G
EIS #:DCQ4-2805X212G
Series #:Q4-2805
Out of Stock
Min Qty:1
|Qty Increment:1
more info
Dow Corning Q4-2805 fluorosilicone channel sealant is as a groove injection sealant for aircraft fuel tanks. It can also be used in applications that require a non-curing sealant. During tank fabrication or maintenance, this sealant is directly injected by an air gun into the grooves of integral tank systems. - When exposed to aviation fuels, this channel sealant will swell just enough to tighten the seal. This is a useful characteristic especially when the expansion of fuel and fuel vapors might cause internal tank pressure, which can happen as the result of aerodynamic heating.
$295.98 / Cartridge
Min Qty:1
|Qty Increment:1
more info
Dow Corning Q4-2805 fluorosilicone channel sealant is as a groove injection sealant for aircraft fuel tanks. It can also be used in applications that require a non-curing sealant. During tank fabrication or maintenance, this sealant is directly injected by an air gun into the grooves of integral tank systems. - When exposed to aviation fuels, this channel sealant will swell just enough to tighten the seal. This is a useful characteristic especially when the expansion of fuel and fuel vapors might cause internal tank pressure, which can happen as the result of aerodynamic heating.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameChannel Sealant
SeriesQ4-2805
General Features
Shelf Life48 Months
StandardsMIL-S-85334 Certified
Storage Temperature30 °C
Design & Construction
ColorWhite
FormPaste
Chemical Properties
CompositionFluorosilicone
Specific Gravity1.36
Physical Properties
Container Size212g
Container TypeCartridge
Odor/ScentSlight
Features
- Superior sealing characteristics under exposure to fuels and oils
- Easily injected and reinjected
- Maintains consistency over wide temperature range from -55 °C (-67 °F) to 200 °C (392 °F)
- Non-curing
- Good tack adhesion
- Essentially unaffected by shock, vibration and thermal cycling
- Contains no catalyst or curing agent
- Withstands immersion in fuels and exposure to fuel vapors in temperatures up to 200 °C (392 °F)
- Contains flow-control particles
- Excellent flow characteristics provide faster injection at reduced pressures
Applications
- For used as Groove Injection Sealants for Aircraft Fuel Tanks
