MFR #:6216 2RSJEM
EIS #:6216-2RS04
Series #:6216
UPC #:07316577068651
MFR #:6216 2RSJEM
EIS #:6216-2RS04
Series #:6216
UPC #:07316577068651
In Stock
Min Qty:1
|Qty Increment:1

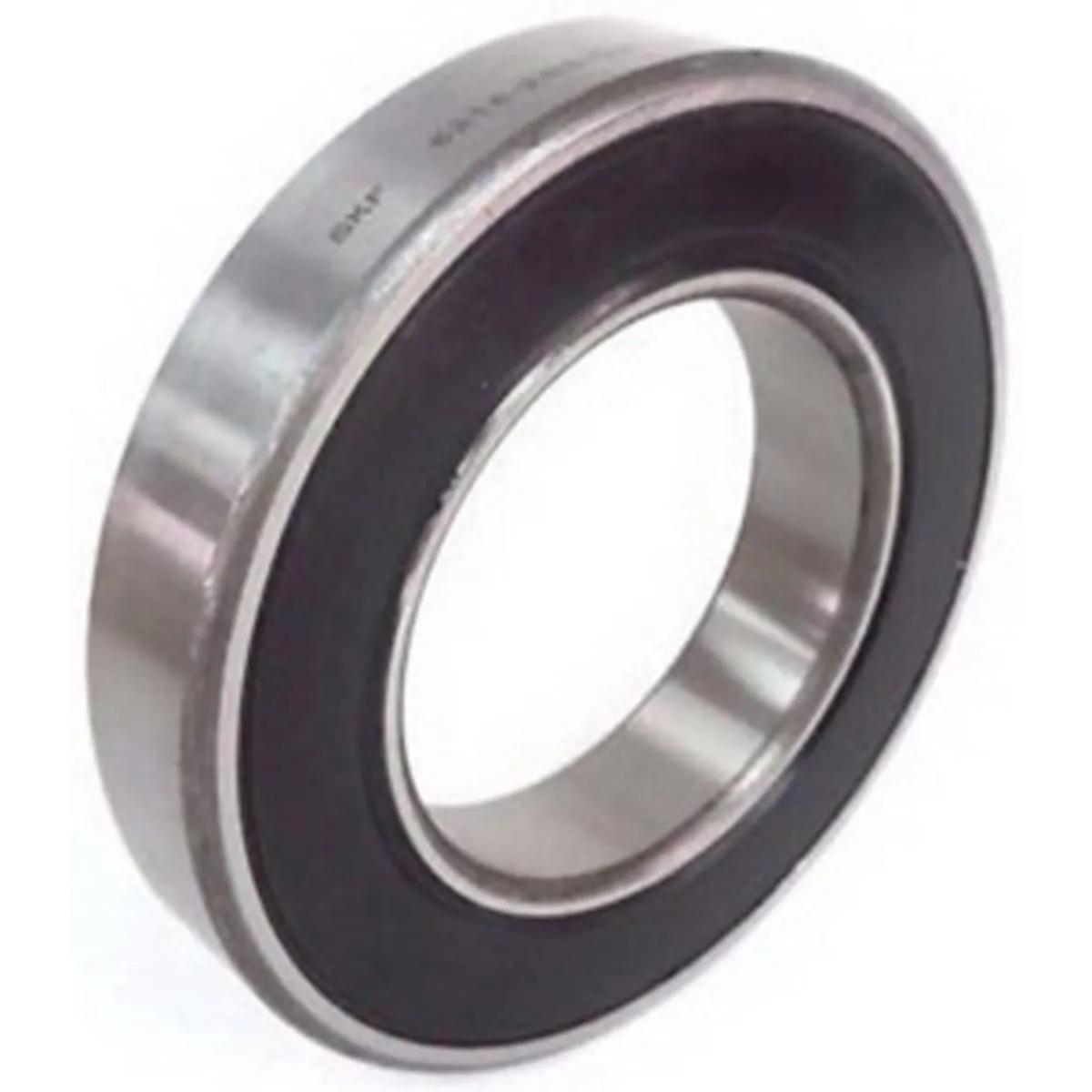

SKF 6200 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6200 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
$243.70 / each
Min Qty:1
|Qty Increment:1
SKF 6200 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6200 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameDeep Groove Radial Ball Bearing
Series6216
General Features
Net Weight1.5kg
Design & Construction
Cage MaterialPressed Steel
Enclosure TypeDouble Seal
Seal MaterialRubber
Performance Details
Dynamic Load Capacity72800 N
Static Load Capacity55000 N
Tolerance ClassP6, P5
Physical Properties
Bore Diameter80 mm
Fillet Radius2 mm
Number of Rows1
Outside Diameter140 mm
Width26 mm
Features
- Comes with improved dimensions
- Generates 50% less noise
- Operational cost and maintenance are low
- Clearance: C3
- Speed Rating: 3000 rpm Limiting
- Temperature Rating: -40 to 100 °C
Applications
- Can be Used In Fans, Pumps, Agriculture, Etc
