MFR #:Scotchcast™ 281
EIS #:PH21-Scotchcast 281
MFR #:Scotchcast™ 281
EIS #:PH21-Scotchcast 281

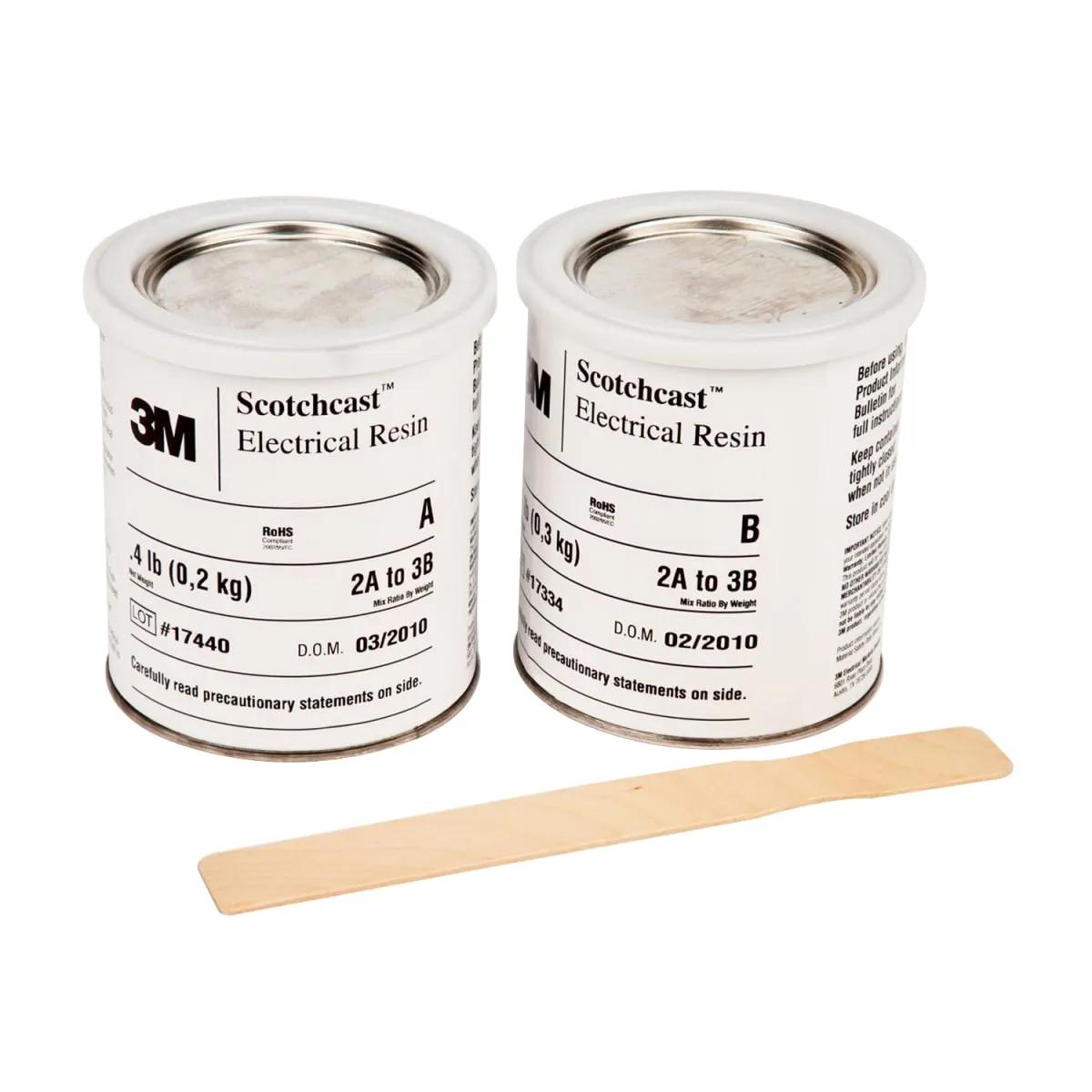

3M™ Scotchcast™ Electrical Resin 281 can be cured at low temperatures, but the optimum properties are obtained with the higher temperature cure schedules. This resin should be used instead of 3M Scotchcast Electrical Resin 241 where greater mechanical strength, higher tensile strength, better thermal shock ad higher thermal conductivity are required. - 3M™ Scotchcast™ electrical resin 281 is characterized by high-temperature and electrical stability, and excellent retention of flexibility, even after prolonged heat aging.
$107.53
- $2,010.07
Select from the options below
3M™ Scotchcast™ Electrical Resin 281 can be cured at low temperatures, but the optimum properties are obtained with the higher temperature cure schedules. This resin should be used instead of 3M Scotchcast Electrical Resin 241 where greater mechanical strength, higher tensile strength, better thermal shock ad higher thermal conductivity are required. - 3M™ Scotchcast™ electrical resin 281 is characterized by high-temperature and electrical stability, and excellent retention of flexibility, even after prolonged heat aging.
Product Options
Showing 4 out of 4 options
Container Size: 54 lb | EIS Part #: 3MR281B54LB | $ / Pail | ||
Container Size: 36 lb | EIS Part #: 3MR281A36LB | $ / Pail | ||
Container Size: 1 lb | EIS Part #: 3MR2811LB | $ / Kit | ||
Container Size: 18 lb | EIS Part #: 3MR28118LB | $ / Kit |
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameEpoxy Electrical Resin
Trade NameScotchcast™
SeriesScotchcast™ 281
General Features
TypeSemiflexible
Design & Construction
Base TypeEpoxy
ColorCream
Cure TypeOven Cure
FormLiquid
Performance Details
Tensile Strength2100 psi
Flexural Strength1250 psi
Moisture Absorption0.32% Weight Increase 240 hr at 96% RH
Gel Time21 min
Chemical Properties
Mixing Ratio2:3 (Weight), 37:63 (Voume %)
Specific Gravity1.43
Viscosity75000 cP
Viscosity - Part-A320000 cP
Viscosity - Part-B38000 cP
Electrical Properties
Dielectric Strength350 V/mil
Physical Properties
Hardness65 Shore D Instantaneous
Elongation45% at Break
Environmental Condition
Temperature Rating155 °C
Features
- High-temperature rating (155 °C - Class F)
- Low temperature curing
- High thermal conductivity
- 3500 psi compressive strength
- 15 x 10^-5 length/unit length/°C coefficient of linear thermal expansion
Applications
- Impregnation and Encapsulation of Coils, Transformers, Motors and Other Electrical and Electronic Components
