MFR #:MW
EIS #:PH21-MW
Series #:MW
MFR #:MW
EIS #:PH21-MW
Series #:MW

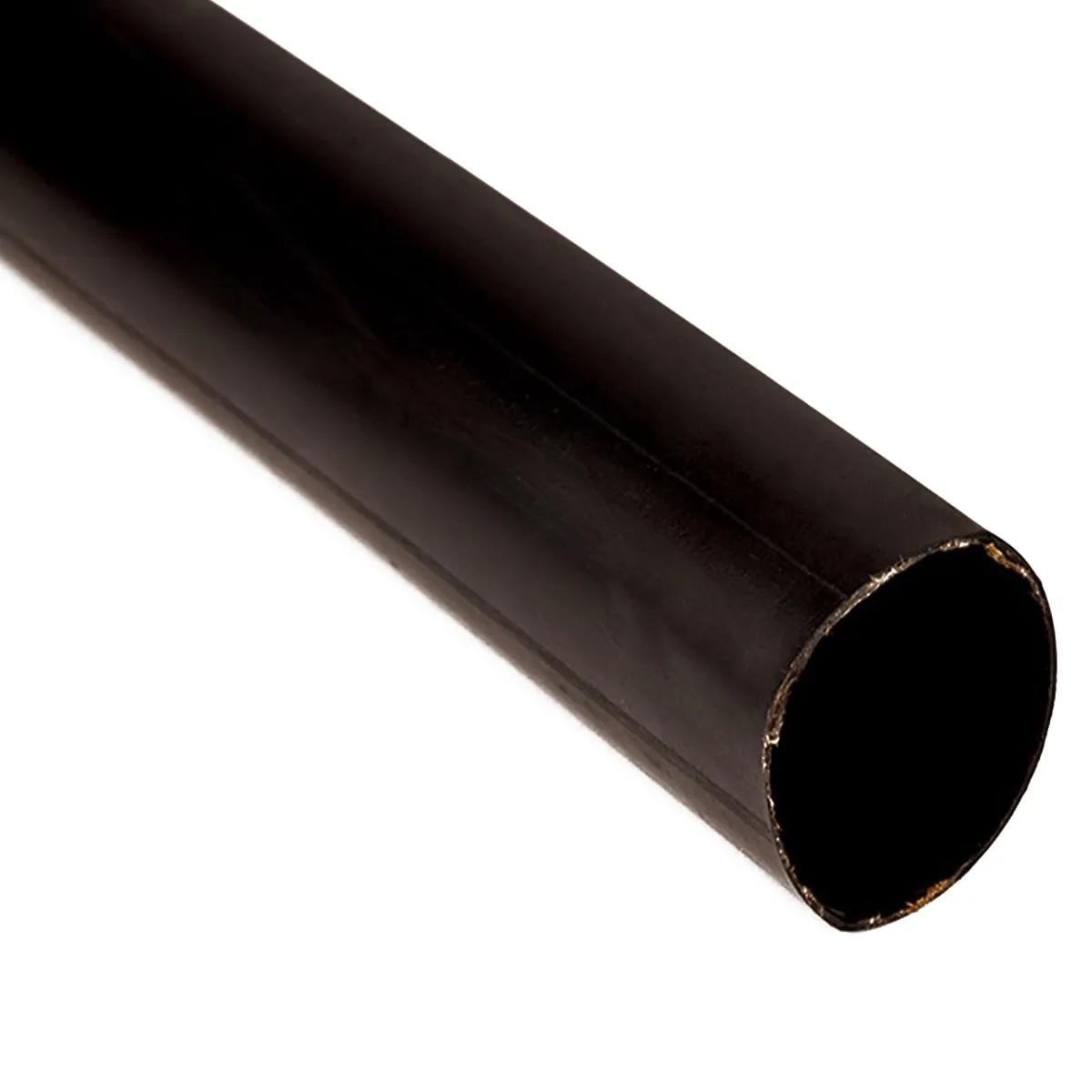

3M™ Heat Shrink Tubing MW is a semi-rigid, 110 °C (230 °F) heat-shrinkable polyolefin tubing that is co-extruded and selectively cross-linked to provide an integral, meltable inner wall. When heated in excess of 135 °C (275 °F), the inner meltable wall of the tubing is simultaneously softened and forced by the shrink action into intimate contact with all underlying surfaces, interstices and small voids. - Upon cooling, the MW tubing provides a tough protective and insulating barrier, highly resistant to penetration by moisture and the attack of chemicals and solvents.
$212.02
- $625.63
Select from the options below
3M™ Heat Shrink Tubing MW is a semi-rigid, 110 °C (230 °F) heat-shrinkable polyolefin tubing that is co-extruded and selectively cross-linked to provide an integral, meltable inner wall. When heated in excess of 135 °C (275 °F), the inner meltable wall of the tubing is simultaneously softened and forced by the shrink action into intimate contact with all underlying surfaces, interstices and small voids. - Upon cooling, the MW tubing provides a tough protective and insulating barrier, highly resistant to penetration by moisture and the attack of chemicals and solvents.
Product Options
Showing 4 out of 4 options
Expandable Diameter: 0.375 Inch | EIS Part #: MW3/8BLK2 | $ / Foot Pack: 125 Pieces/Case | ||
Expandable Diameter: 0.75 Inch | EIS Part #: MW3/4BLK2 | $ / Foot Pack: 45 Pieces/Case | ||
Expandable Diameter: 0.187 Inch | EIS Part #: MW3/16BLK2 | $ / Foot Pack: 12 Pieces/Case | ||
Expandable Diameter: 0.25 Inch | EIS Part #: MW1/4BLK2 | $ / Foot Pack: 12 Pieces/Case |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameHeat Shrink Tubing
SeriesMW
General Features
Shelf Life120 Months
TypeAdhesive-Lined, Semi-Rigid
Design & Construction
ColorBlack
Insulation MaterialPolyolefin
Minimum Shrink Temperature135 °C
Wall TypeMultiple
Performance Details
Tensile Strength2200 psi
Heat Aging168 hr
Shrink Ratio2.5:1
Heat Shock4 hr
Low Temperature Flexibility55 °C
Chemical Properties
Specific Gravity1.0
Electrical Properties
Dielectric Strength900 V/mil
Physical Properties
Length4 ft
Elongation400%
Water Absorption0.1%
Environmental Condition
Reflow Temperature80 °C
Features
- Multiple wall polyolefin insulation, strain relief and sealing of electrical connections, wire splices and components
- When fully recovered, the tubing will shrink to 40% of its original diameter
- The recovered wall thickness of the tubing is proportional to the degree of recovery
- Non-corrosive chemical effect
- Non-nutrient Fungus Resistance
- No dripping, flowing or cracking (4 hr at 250 °C) of heat shock
- Volume Resistivity: 10^15 Ohm-cm
- Reflow Temperature: >80 °C
- Low Temperature Flexibility: -55 °C
- Temperature Rating: -55 to 110 °C
Applications
- For Braided-Shield Pigtails, Electrical Wiring, Mechanical Assemblies, Electronic Components, Electrical Wire Splices, Breakouts, Connections, Solder Joints, Delicate Wire Terminations, End-Sealing of Electrical Cables and Rigid Tubings
