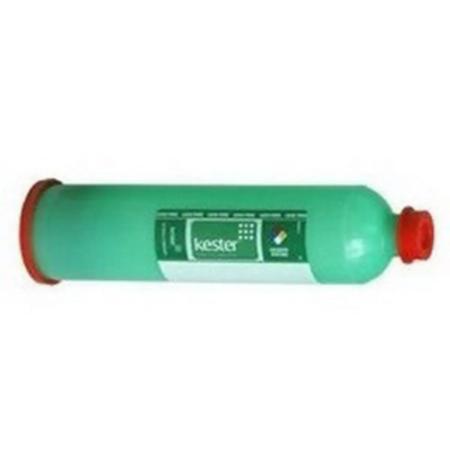

Kester NP505HR-SAC305-88.5 Lead-Free Solder Paste

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:NP505HR-SAC305-88.5

EIS #:PH19-NP505HR-SAC305-88.5

Series #:NP505HR-SAC305-88.5

MFR #:NP505HR-SAC305-88.5

EIS #:PH19-NP505HR-SAC305-88.5

Series #:NP505HR-SAC305-88.5

0
0
The Kester NP505-HR is a zero halogen, lead-free, no-clean solder paste formula developed specifically for high reliability applications. NP505-HR has been formulated to have reliable residues even in harsh damp cycling SIR testing. NP505-HR can handle a wide variety of printer variables, including print speed and long idle times with a wide range of temperatures and humidities. - NP505-HR is fully capable of printing and reflowing 01005 components in air reflow with minimal graping behavior. Post-soldering, the NP505-HR offers minimized defects, including head-in-pillow and QFN/BGA voiding. This paste is zero halogen, exceeding the IPC definition for halogen-free. NP505-HR is classified as ROL0 per IPC J-STD-004B.
$146.67
 - $185.84
Select from the options below
0
0
The Kester NP505-HR is a zero halogen, lead-free, no-clean solder paste formula developed specifically for high reliability applications. NP505-HR has been formulated to have reliable residues even in harsh damp cycling SIR testing. NP505-HR can handle a wide variety of printer variables, including print speed and long idle times with a wide range of temperatures and humidities. - NP505-HR is fully capable of printing and reflowing 01005 components in air reflow with minimal graping behavior. Post-soldering, the NP505-HR offers minimized defects, including head-in-pillow and QFN/BGA voiding. This paste is zero halogen, exceeding the IPC definition for halogen-free. NP505-HR is classified as ROL0 per IPC J-STD-004B.

Product Options

Showing 3 out of 3 options
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
600 g
Container Type
Cartridge
Particle Type
Type 4
EIS Part #
SN965NP505HR-600G4
$ / Cartridge
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
500 g
Container Type
Jar
Particle Type
Type 4
EIS Part #
SN965NP505HR-500G4
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
500 g
Container Type
Jar
Particle Type
Type 3
EIS Part #
SN965NP505HR-500G
$ / Piece

Attributes

General Information
Item NameLead-Free Solder Paste
SeriesNP505HR-SAC305-88.5
General Features
Shelf Life12 Months
Storage Temperature0 to 10 °C
TypeLead-Free
Design & Construction
ColorSilver Gray
FormPaste
Flux TypeNo-Clean
Chemical Properties
Flux FormulaNP505HR
Lead FreeYes
Physical Properties
Odor/ScentMild
AlloySn96.5 Ag3.0 Cu0.5 (SAC305)
Environmental Condition
Melting Range217 °C
Supporting Information
Applicable MaterialsStainless Steel, Molybdenum, Nickel Plated or Brass
Flux DesignatorROL0
RoHS Info2015/863 Directive
