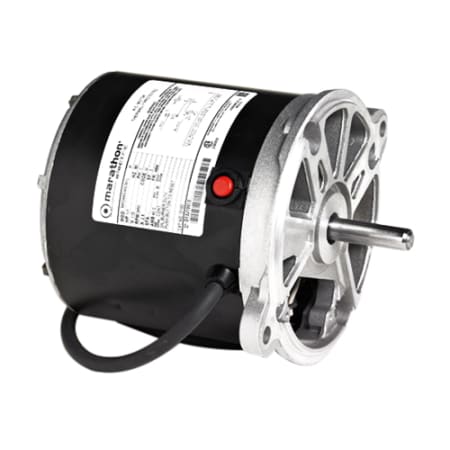

Marathon 115V 1-Phase Round Mount Semi Closed Enclosure Clockwise Oil Burner Motor
MFR #:MA-115-R-SC-OBM
EIS #:PH23-MA-115-R-SC-OBM
MFR #:MA-115-R-SC-OBM
EIS #:PH23-MA-115-R-SC-OBM
Marathon 115V 1-Phase Round Mount Semi Closed Enclosure Clockwise Oil Burner Motor. Horizontal orientation, 10 IP Code, Manual thermal protection - Marathon 115V 1-Phase Round Mount Semi Closed Enclosure Clockwise Oil Burner Motor
$208.69
- $244.08
Select from the options below
Marathon 115V 1-Phase Round Mount Semi Closed Enclosure Clockwise Oil Burner Motor. Horizontal orientation, 10 IP Code, Manual thermal protection - Marathon 115V 1-Phase Round Mount Semi Closed Enclosure Clockwise Oil Burner Motor
Product Options
Showing 2 out of 2 options
 | HP Rating: 0.167 HP | EIS Part #: MOTO102 | $ / Piece | |
| HP Rating: 0.143 HP | EIS Part #: MOTO100 | $ / Piece |
- Attributes
- Features
Attributes
General Information
Item NameOil Burner Motor
General Features
StandardsUL Listed, CSA Certified
Design & Construction
DutyContinous
Enclosure TypeSemi Closed
Insulation TypeClass B
Mounting TypeRound
RotationClockwise
Shaft PositionHorizontal
Start MethodSplit Phase
Performance Details
Speed Rating3600 rpm
Electrical Properties
Frequency Rating60 Hz
Phase1-Phase
Service Factor1
Voltage Rating115 VAC
Physical Properties
Frame Size48
Shaft Diameter0.5 Inch
Weight11 lb
Environmental Condition
Temperature Rating40 °C
Thermal ProtectionYes
Features
- Horizontal orientation
- 10 IP Code
- Manual thermal protection
