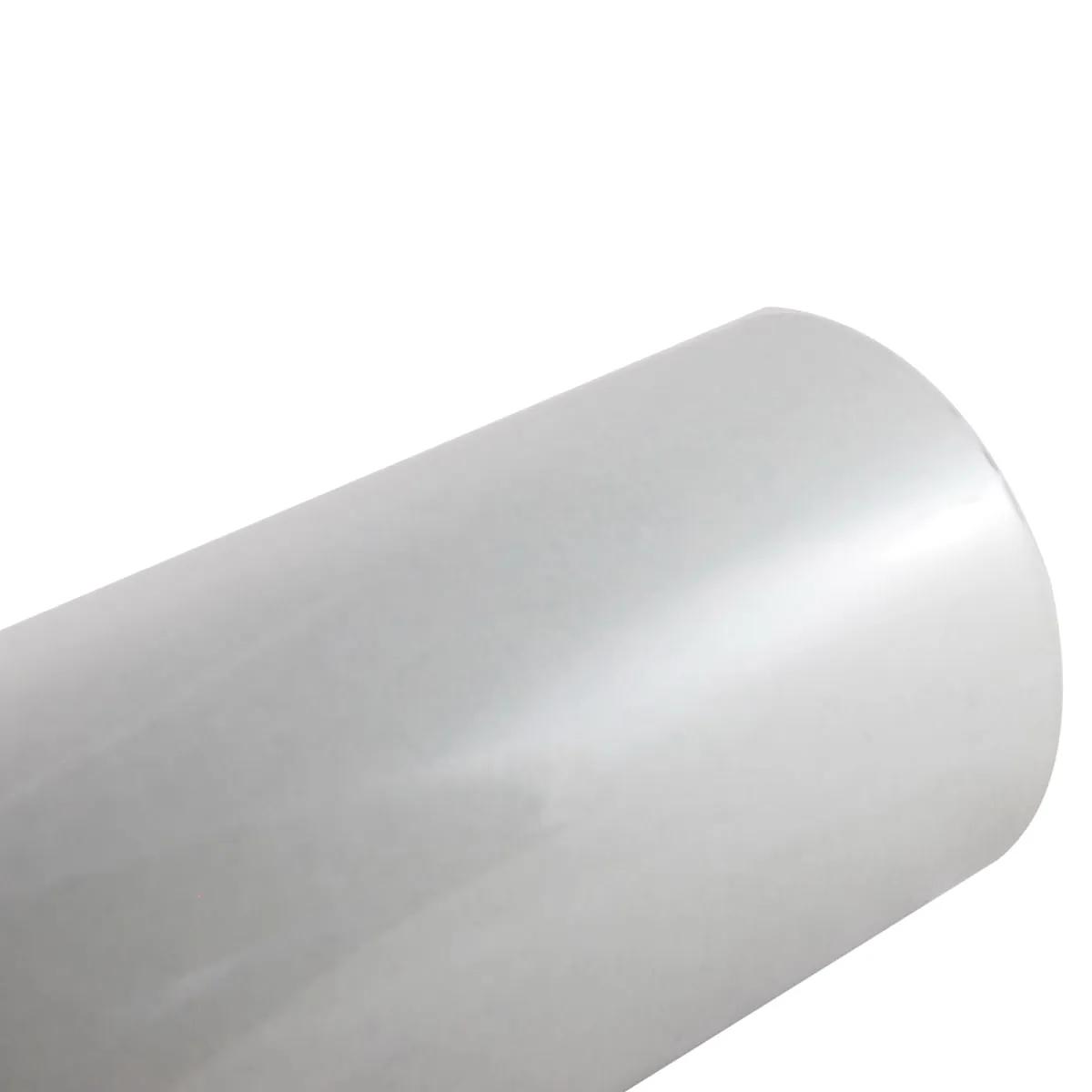

RMR Polyester Film Laminate Sheet
MFR #:Rag Mylar® Rag-SHT
EIS #:PH21-Rag Mylar Rag-SHT
Series #:Rag Mylar® Rag-SHT
MFR #:Rag Mylar® Rag-SHT
EIS #:PH21-Rag Mylar Rag-SHT
Series #:Rag Mylar® Rag-SHT
Acuflex® rag paper/polyester film laminates are constructed from 100% pure cotton rag paper and electrical grade polyester film bonded with Isola's Thermal Bond adhesive system. - These laminates are available in duplex and constructions.
$10.09
- $23.67
Select from the options below
Acuflex® rag paper/polyester film laminates are constructed from 100% pure cotton rag paper and electrical grade polyester film bonded with Isola's Thermal Bond adhesive system. - These laminates are available in duplex and constructions.
Product Options
Showing 4 out of 4 options
 | Length: 36 Inch | Thickness: 16 mil | Width: 24 Inch | EIS Part #: RMR72701 | $ / Sheet | |
| Length: 36 Inch | Thickness: 12 mil | Width: 24 Inch | EIS Part #: RMR52501 | $ / Sheet | |
| Length: 36 Yard | Thickness: 10 mil | Width: 36 Inch | EIS Part #: RMR424A | $ / Yard | |
| Length: 36 Inch | Thickness: 10 mil | Width: 24 Inch | EIS Part #: RMR42401 | $ / Piece |
- Attributes
- Features
- Applications
Attributes
General Information
Item NamePolyester Film Laminate
Trade NameRag Mylar® Rag
SeriesRag Mylar® Rag-SHT
General Features
TypeTriplex
Design & Construction
Insulation TypeClass B
Features
- Tough, affordable laminates for a wide variety of applications
- Excellent resistance to cut-through and edge tear
- Many UL systems including Acuflex laminates are available for Class B-130 °C, Class F-155 °C, may often be used as secondary insulation through Class H-180 °C
- Wide range of constructions to optimize mechanical and electrical designs
Applications
- Motors
- Generators
- Transformers
- Sub-Fractional to the Largest Rotating Electrical Equipment as Slot, Phase and End-Turn Insulation
- Ground and Wrapper Insulation in Dry-type Transformers
- Formed and Fabricated Parts
