MFR #:CHICO-A05
EIS #:CHICOA055LB
MFR #:CHICO-A05
EIS #:CHICOA055LB
In Stock
Min Qty:1
|Qty Increment:1
more info

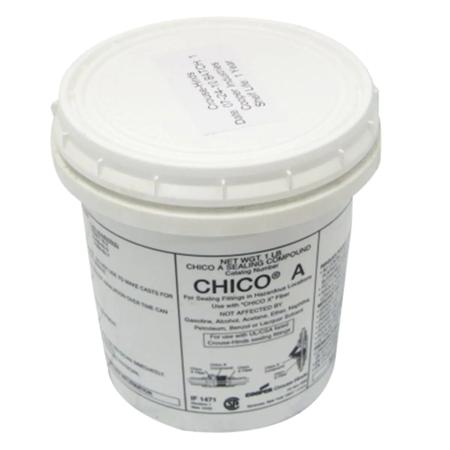

Introduced more than 75 years ago, this brand now consists of the traditional Chico® A sealing compound, the Chico® Intrapak, Chico® X Fiber, and Chico® SpeedSeal™ Compound. Sealing compounds form a seal around and between each electrical conductor inside a sealing fitting. - A water soluble powder that can be easily mixed and poured. Once hardened, the compound restricts the passage of gases, vapors, or flames through the conduit from one portion of an electrical installation to another portion.
$95.71 / each
Min Qty:1
|Qty Increment:1
more info
Introduced more than 75 years ago, this brand now consists of the traditional Chico® A sealing compound, the Chico® Intrapak, Chico® X Fiber, and Chico® SpeedSeal™ Compound. Sealing compounds form a seal around and between each electrical conductor inside a sealing fitting. - A water soluble powder that can be easily mixed and poured. Once hardened, the compound restricts the passage of gases, vapors, or flames through the conduit from one portion of an electrical installation to another portion.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameSealing Compound
Trade NameSpeedSeal™ Chico® A
SeriesSpeedSeal™ Chico® A05
Performance Details
Full Cure Time8 hr
Physical Properties
Container Size5 lb
Container TypeCan
Density115 cu-Inch
Environmental Condition
Temperature Rating40 °C
Features
- A water soluble powder that can be easily mixed and poured
- The compound, unusually dense, expands slightly when hardening and bonds to inner walls of sealing fittings
- Chico A cure time is 8 hrs for class I, Group C and D applications and 72 hrs for class I, Group A and B applications
- Chico A has a 1 year shelf life from date of manufacture
- Temperature Rating: -40 to 165 °F (After Curing)
- Density: 115 cu-Inch
- Temperature Rating: -40 to 165 °F
Applications
- For Sealing Fittings and Hubs, Forms a seal around each electrical conductor and between them and inside of the sealing fitting to restrict the passage of gases, vapors or flames through the sealing fitting at atmospheric pressure and at normal ambient temperatures
