MFR #:2205
EIS #:PH19-2205
Series #:2205
MFR #:2205
EIS #:PH19-2205
Series #:2205

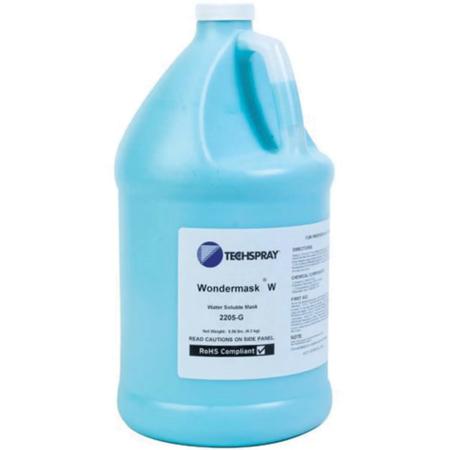

A temporary, water soluble solder masking agent formulated with non-corrosive materials. Wondermask W is compatible with all organic and synthetic fluxes and is quickly removed in batch cleaning and in-line water systems. - This masking agent is available in three viscosities: Wondermask W (formulated for hand applications), Wondermask WA (for robotic and pneumatic dispensing equipment) and Wondermask WS (thicker formulation for silk screening and template screening operations).
$25.51
- $204.89
Select from the options below
A temporary, water soluble solder masking agent formulated with non-corrosive materials. Wondermask W is compatible with all organic and synthetic fluxes and is quickly removed in batch cleaning and in-line water systems. - This masking agent is available in three viscosities: Wondermask W (formulated for hand applications), Wondermask WA (for robotic and pneumatic dispensing equipment) and Wondermask WS (thicker formulation for silk screening and template screening operations).
Product Options
Showing 2 out of 2 options
Container Size: 1 gal | EIS Part #: 2205-G | $ / each Pack: 1 Unit/Case | ||
Container Size: 8 oz | EIS Part #: 2205-8SQ | $ / each Pack: 24 Unit/Case |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameSolder Mask
Series2205
Design & Construction
ColorBlue
FormLiquid
Performance Details
Cure Time1 hr
Chemical Properties
Chemical CompositionIsopropyl Alcohol, Glycerol
Viscosity9000 cP
VOC53 g/L
Physical Properties
Odor/ScentAlcohol
Supporting Information
RoHS Info2011/65/EU Directive
Removal MethodWater Soluble, Inline and Batch Cleaning Systems
Features
- Water washable
- Non-flammable
- Non-ozone depleting
- Non-corrosive
- Low odor
- Water soluble
- Cure time of 1 - 2 hr at Ambient Temperature, 30 min at 80 °C
- Viscosity of 9000 - 10000 cP
Applications
- For use in Electronic Assembly, Soldering / Desoldering
