MFR #:1544
EIS #:PH19-1544
Series #:1544
MFR #:1544
EIS #:PH19-1544
Series #:1544

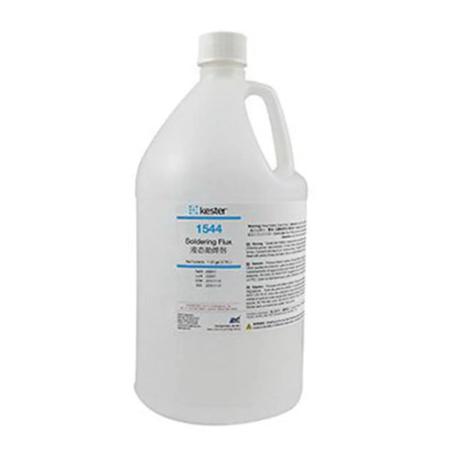

The Kester 1544 activated rosin liquid flux is a homogeneous solution of high quality, purified grade WW rosin blended into an alcohol solvent system. A very effective activating agent has been added to provide superior fluxing ability. 1544 is a liquid equivalent of Kester 44 activated rosin core solder. The desired flux activity and the amount of rosin residue are determined by the concentration (solids percentage) of the flux. 1544 can be used for solder coating or tinning bare leads. - 1544 has been developed for fluxing applications where non-activated and mildly activated rosin fluxes are too inactive to remove metal oxides, where proper and complete residue removal of potentially corrosive water soluble organic acid flux is not possible and where soldering of electronic assemblies requires instant wetting and excellent capillary flow.
$169.88
- $189.96
Select from the options below
The Kester 1544 activated rosin liquid flux is a homogeneous solution of high quality, purified grade WW rosin blended into an alcohol solvent system. A very effective activating agent has been added to provide superior fluxing ability. 1544 is a liquid equivalent of Kester 44 activated rosin core solder. The desired flux activity and the amount of rosin residue are determined by the concentration (solids percentage) of the flux. 1544 can be used for solder coating or tinning bare leads. - 1544 has been developed for fluxing applications where non-activated and mildly activated rosin fluxes are too inactive to remove metal oxides, where proper and complete residue removal of potentially corrosive water soluble organic acid flux is not possible and where soldering of electronic assemblies requires instant wetting and excellent capillary flow.
Product Options
Showing 2 out of 2 options
Container Size: 1 gal | EIS Part #: KES1544G | $ / US gallon | ||
Container Size: 5 gal | EIS Part #: KES15445G | $ / US gallon |
- Attributes
- Features
Attributes
General Information
Item NameSoldering Flux
Series1544
General Features
Shelf Life24 Months
Storage Temperature10 to 25 °C
Design & Construction
ColorAmber
FormLiquid
Flux TypeRosin Activated
Performance Details
Vapor Pressure59 hPa
Chemical Properties
Chemical CompositionRosin, Sec-Butanol, Ethanol, Isopropanol, Methanol
Flux Formula1544
Specific Gravity0.917
VOC459 g/L
Physical Properties
Odor/ScentAlcohol
Supporting Information
Flux DesignatorROM1
RoHS Info2015/863 Directive
Features
- High thermal stability
- Improves soldering performance
- Vapor pressure of 59 hPa at 20 °C
