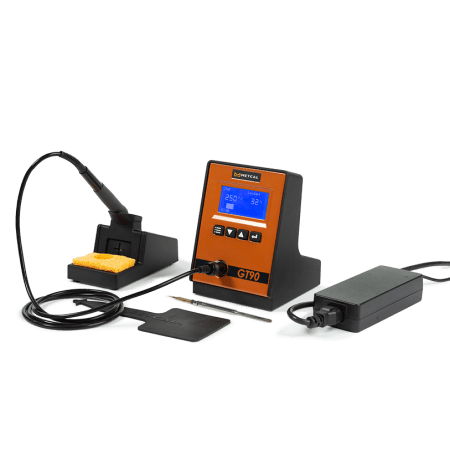

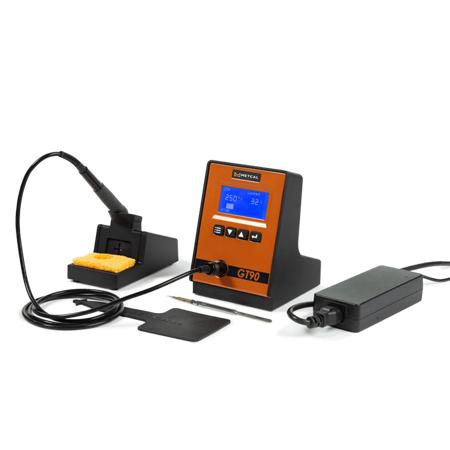

Metcal GT90-HP-T4 Soldering System, 90 Watt (Station, Adapter, T4 Hand-piece, and Workstand)
MFR #:GT90-HP-T4
EIS #:GT90-HP-T4
MFR #:GT90-HP-T4
EIS #:GT90-HP-T4
Min Qty:1
|Qty Increment:1
GT90 Soldering System is an adjustable temperature station that uses inductive technology as the heating mechanism. The complete system includes a soldering station with an external Power supply, a hand-piece, and a workstand to support a variety of soldering and rework applications using the associated tips and Cartridges.
The GT adjustable temperature technology has a fast and repeatable heating mechanism and encompasses the convenience of temperature adjustment with the stability and performance of inductive heating. This gives the GT systems a significant performance advantage with much faster time to temperature, thermal recovery and temperature stability during soldering versus competitors in the same product category.
GT90 is a single port soldering station with best in class performance, 90 watts of Power, and ideal for single iron applications on the production line. The GT90 is supplied with a replaceable 90W external Power supply allowing for a more compact design to save space on the bench and improve the quality and life of the system.
Learn more about GT90 Soldering System here
Min Qty:1
|Qty Increment:1
GT90 Soldering System is an adjustable temperature station that uses inductive technology as the heating mechanism. The complete system includes a soldering station with an external Power supply, a hand-piece, and a workstand to support a variety of soldering and rework applications using the associated tips and Cartridges.
The GT adjustable temperature technology has a fast and repeatable heating mechanism and encompasses the convenience of temperature adjustment with the stability and performance of inductive heating. This gives the GT systems a significant performance advantage with much faster time to temperature, thermal recovery and temperature stability during soldering versus competitors in the same product category.
GT90 is a single port soldering station with best in class performance, 90 watts of Power, and ideal for single iron applications on the production line. The GT90 is supplied with a replaceable 90W external Power supply allowing for a more compact design to save space on the bench and improve the quality and life of the system.
Learn more about GT90 Soldering System here
- Attributes
- Features
- Documents
Attributes
General Information
Design & Construction
Features
Features and Benefits
- Inductive heating systems offering best in class performance
- Adjustable Temperature
- Intuitive 4 button user interface
- Wide variety of Cartridge and tip options
- Compact to minimize the workbench footprint
- Programmable password lock-out and temperature range limits
- Standby and sleep settings to increase tip life
- USB port to Power accessories and firmware updates
Specifications
- Input Line Voltage: 100-240 VAC, grounded circuit
- Input Frequency: 50/60 Hz
- Power Output: 90 W max.
- Output Line Frequency: 465 kHz
- Heating Method: Inductive Heating
- Display 2.8" Monochrome LCD Display
- Controls: 4 tactile buttons
- Operation: Single Port
- Tip-to-Ground Potential: < 2 mV
- Tip-to-Ground Resistance: < 2 Ohm
- Ground Detection: Permanent
- Surface Resistivity: 105 - 109 Ω , ESD Safe
- Idle Temperature Stability: ± 1.1 °C in still air
- Tip Temperature Accuracy: Meets or Exceeds IPC J-STD-001
- Communications: 1 x USB A connector
- Warranty: 1 year
- Dimensions (w x d x h): 110 x 125 x 160 mm (4.3" x 4.9" x 6.1")
- Weight: 1.68 kg (3.7 lb.)
- Certification: CE, TUV
- Power-Connector: Mini-DIN
- Ambient Operating Temperature: 10 to 40 °C
- Maximum Enclosure Temperature: 55 °C
Product Comprised of:
- GT90 Power Station with Adapter
- GT-HP-T4UF Hand-Piece
- GT-HC-T4 Heater Cartridge
- GT-WS Work Stand
