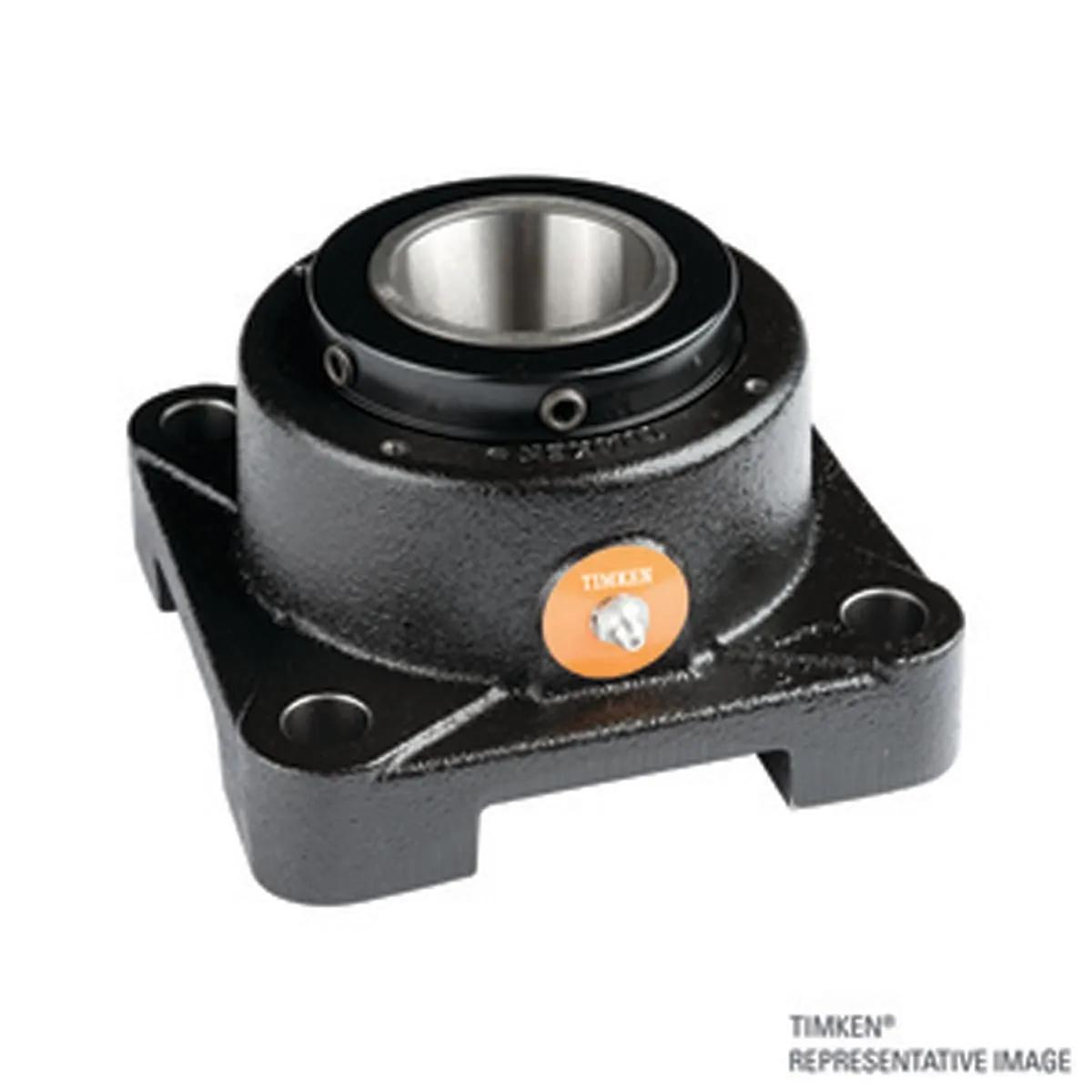

Timken E-4BF-TRB-11/2T Timken Mounted Tapered Roller Bearing Housed Unit Flange: 4 Bolt 38.100 mm 1.5000 in Bore
EIS #:E-4BF-TRB-11/2T
UPC #:0053893534992
EIS #:E-4BF-TRB-11/2T
UPC #:0053893534992
Out of Stock
Min Qty:1
|Qty Increment:1
Timken® Type E mounted tapered roller bearings (housed units) feature industry-leading premium tapered roller bearings, high-performance triple-barrier seals, e-coated housings and locking collars. Timken® tapered roller bearings have the capacity to manage both radial and axial loads and are engineered to provide the greatest durability in the most compact space.
$396.79 / Piece
Min Qty:1
|Qty Increment:1
Timken® Type E mounted tapered roller bearings (housed units) feature industry-leading premium tapered roller bearings, high-performance triple-barrier seals, e-coated housings and locking collars. Timken® tapered roller bearings have the capacity to manage both radial and axial loads and are engineered to provide the greatest durability in the most compact space.
- Attributes
- Features
Attributes
General Information
Item NameType E
General Features
Net Weight11.34 ib
TypeMounted Tapered Roller Bearing
Design & Construction
Bore TypeRound
Cage TypeSteel
MaterialBearing Steel
Mounting TypeFlange: 4 Bolt
Retainer MaterialSteel
Retainer TypeSteel
Rolling Element MaterialSteel
Row TypeDouble row
Performance Details
Dynamic Load Capacity7860 lb
Operating Temperature-54 °F To 250 °F
Precision Class4
Self AligningNo
Speed Rating3320 rpm (Grease)
Static Load Capacity33000 lb
Physical Properties
Bolt Size0.5 Inch | 12.7 mm
Bore Diameter1.5000 Inch | 38.100 mm
Fillet Radius1.4 Inch | 35.56 mm
Flange Outside Diameter4.1875 Inch | 106.363 mm
Flange Thickness1.19 Inch | 30.226 mm
Length Through Bore3.375 Inch | 85.725 mm
Overall Height5.375 Inch | 136.525 mm
Overall Length5.375 Inch | 136.525 mm
Overall Width3.3750 Inch | 85.725 mm
Features
- Industry leading high performance triple-barrier seals result in improved grease retention and are more effective at preventing water and mud/slurry ingress
- Rotating collar acts as an initial flinger and provides an additional barrier
- Electric deposition coatings on housings and collars provide superior corrosion resistance
- Set screws with nylon patch greatly reduce set screw back out, even in the most severe applications
- High performance Timken® bearings provide the highest rating and bearing life
- Flange 4-bolt housing
