MFR #:19350
EIS #:19350-DES
MFR #:19350
EIS #:19350-DES
Low Stock
Min Qty:1
|Qty Increment:1
Pack:Each

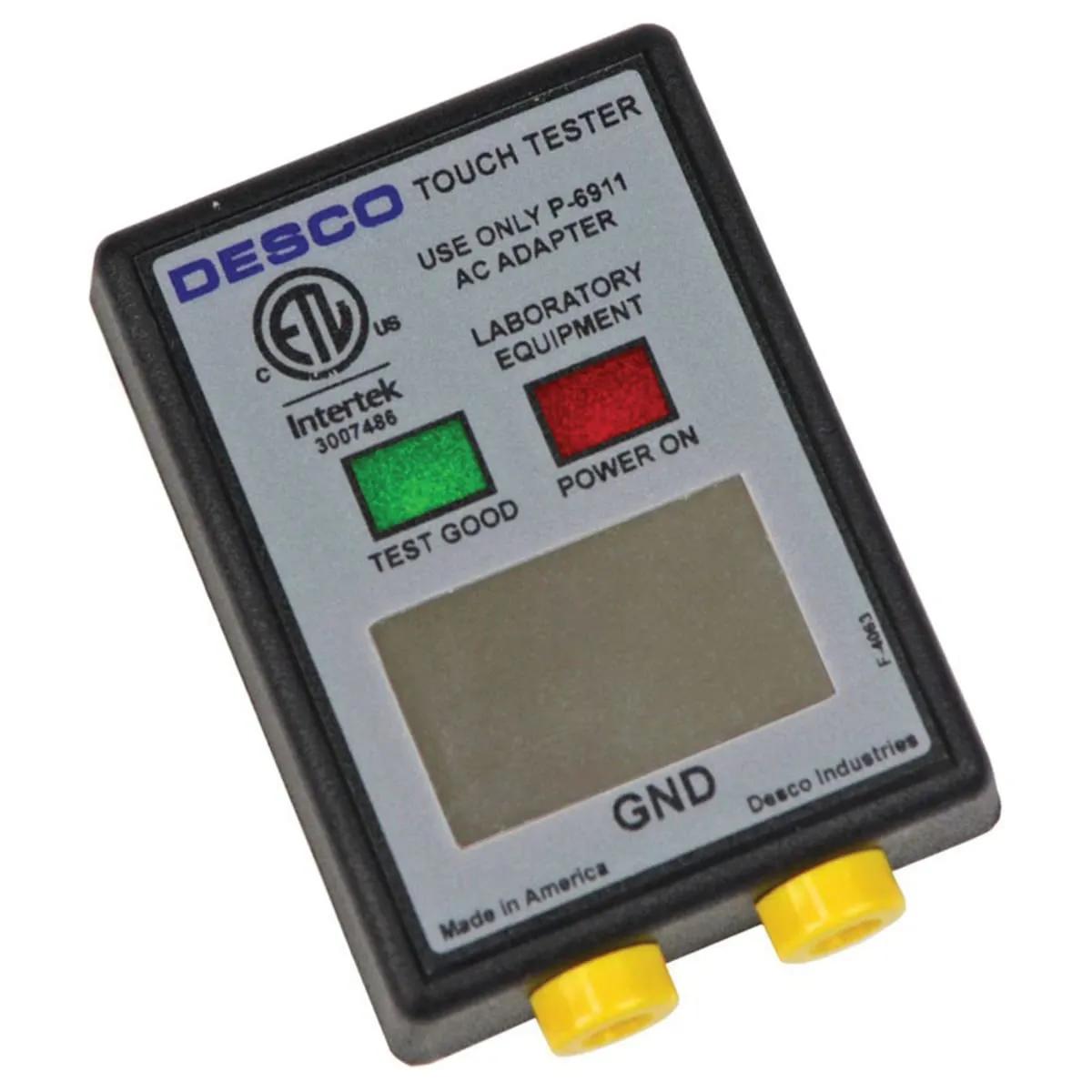

The Touch Tester is an "on demand" wrist strap tester that also functions as a common-point ground for two wrist straps and a mat, when the wearer of a wrist strap touches the metallic surface of the Touch Tester, a path for current flow is completed from the wearer's skin, through the wrist strap, to the metallic surface to ground. - This action will cause the green "test good" LED to light (and the optional audible signal to sound) as long as the resistance of the circuit path is between 750k - 10 M ohms.
$124.13 / each
Pack: Each
Min Qty:1
|Qty Increment:1
Pack:Each
The Touch Tester is an "on demand" wrist strap tester that also functions as a common-point ground for two wrist straps and a mat, when the wearer of a wrist strap touches the metallic surface of the Touch Tester, a path for current flow is completed from the wearer's skin, through the wrist strap, to the metallic surface to ground. - This action will cause the green "test good" LED to light (and the optional audible signal to sound) as long as the resistance of the circuit path is between 750k - 10 M ohms.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameWrist Strap Touch Tester
Trade NameDesco
General Features
Net Weight0.1 lb
StandardsANSI/ESD S1.1-2006, IEC 664
Design & Construction
Display TypeLED
Technical Details
Accuracy+/-20%
Electrical Properties
Frequency Rating60 Hz
Range750k - 10 Megaohm
Voltage Rating6VDC/4VDC Test
Physical Properties
Height2.9 Inch
Length2.1 Inch
Meter Weight0.1 lb
Width0.8 Inch
Environmental Condition
Temperature Rating41 to 104 °F
Supporting Information
Includes(1) Adaptor, NIST Calibration Certificate, User Manual
Power Supply120VAC Adaptor
Features
- Connects to utility ground when plugged in
- Quick, easy installation and grounding of both wrist straps and table mats
- Tests entire circuit - wrist strap, cord and skin contact, Reliable resistance test
- Acts as common point ground for the worksurface, no other ground cords needed
- Test performed during normal use at workstation
- NIST traceable standards - simple means to assure accurate performance Lower calibration life cycle costs
- Ground touch tester rated 6.5VDC, 50mA
Applications
- For Indoor use only at Altitudes not Exceeding 6500 ft
